1. AFM Calibration   ☜ Click here (Item List)

AFM Information  ☜ Click here

2. AFM Tools

* AFM Disc, Punch, Carrier, Workstation 등

3. AFM Probes


* Silicon Metrology Probes : Nano Device 社의 Tap300, Tap150, Multi75


* Nano Indenter
   Micro Star makes a variety of standard and custom nano indenters. Micro Star also has
   documented, traceable nano indenter standards available.  For complete information see
   this Nano Indenter documentation.

           The following are sample photographs of Micro Star nano indenters:



       Nano Indenter Specifications

       Nano Indenter Holders

               Spherical and Rounded Cone Indenters

               Nano Indenter Angular Measurements

           The following are sample photographs of Micro Star nano indenters:

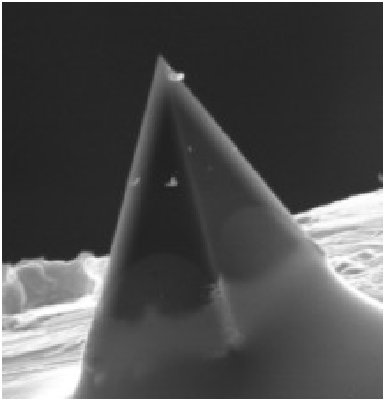

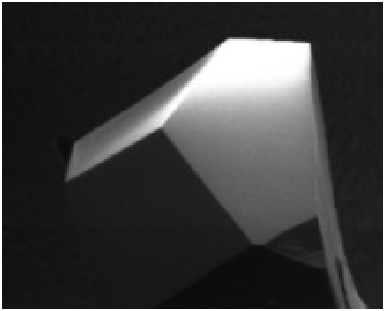

Berkovich Diamond Indenter                 Four sided Pyramid Diamond Indenter - The height of this pyramid is 50µ.


      Taper Cone Diamond Indenter -                               Diamond Cone Indenter - 90° angle and 5µ end radius.
      The cylindrical end is 20µ diameter and 60µ long        Formed on a 200µ diameter rod.

     * AFM Diamond Probes
       Single crystal diamond probes mounted on especially fabricated sapphire cantilevers or on
       standard silicon cantilevers. These tips offer the durability of diamond with a defined tip
       geometry and many possible custom parameters. Conductive diamond probes are also
       available.

              AFM Sapphire Cantilever Spring Constant

              'Journal of Physics' Paper

    * Diamond Filaments
       Bending diamond?  Single crystal diamond filaments developed by Micro Star with newly
       discovered technology. The filaments have the expected but remarkable and never seen
       before property of being flexible.
